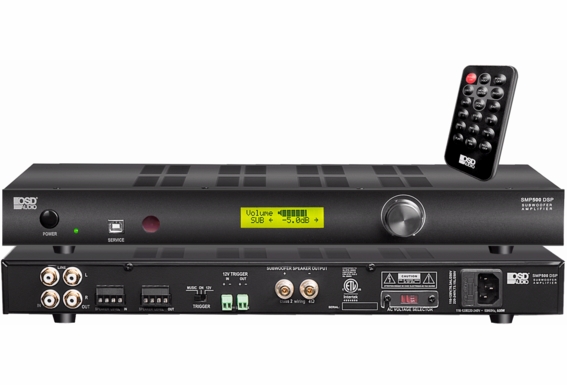

OSD Audio SMP500DSP Class D Subwoofer Amp is designed for use with higher wattage passive subwoofers such as in-wall subs that require external power. It is rack mountable and 1U chassis. This sturdy sub amplifier is not for the faint of heart. It serves up 1000 watts of power peak and 400W RMS @ 4 ohms, so to say that it is powerful is an understatement.

You'll experience deep, rich and crisp bass while watching your favorite movies, especially action and adventure flicks. A big bang for the buck, features include a front-mounted power meter, back panel adjustable gain and volume control limiter to protect the woofers as well as low-level and high-level pass-through input/outputs to cover newer and old school sound systems. Combining the best qualities of both class A and B amp technologies, distortion is low while efficiency is high, and the SMP500DSP Mono Amp also includes a variable high cut filter that routes higher frequencies to main speakers. This allows subs to concentrate on the low-frequency sound effects for which they are designed and keeps low bass away from your surround speakers for much cleaner highs and midrange.

This sub amp does more than just supply power. You'll notice an improvement in the overall sound quality of your entire home theater surround sound system.

Specifications:

• Design Type: Mono Class D

• Peak Power Output: 1000W @ 4 ohm

• Power Output: 400W RMS @ 4 ohm

• Frequency Response: 30Hz ~ 150Hz, +/-1dB

• Impedance: 8 ohm to 4 ohm stable

• Input Sensitivity: 190mV

• Crossover: 40-160Hz

• Phase: 0-315°

• Signal to Noise Ratio: 95dB

• Turn on options: Music Sensing, Manual On or 12V Trigger

• 110/220V switchable

• DSP (Digital Signal Processing): Yes

• Automatic source switching

• Input and Output Terminals: Line input, stereo/LFE input, 12V trigger inputRCA input, speaker level in/out, trigger, sub out

• Rack Mountable? Yes, rack mount ears included

• Remote Control? Yes

• Dimensions (W x H x D): 17.13" x 1.75" x 9.45"

• Weight: 7.6 lbs
