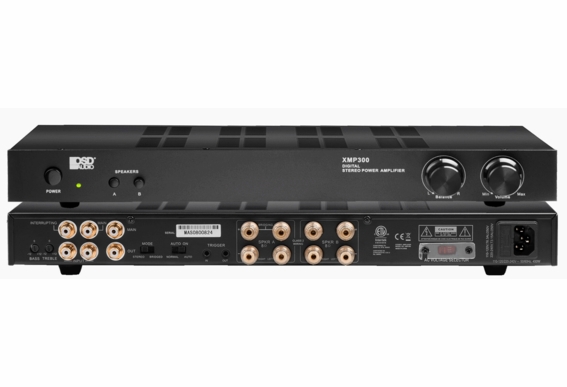

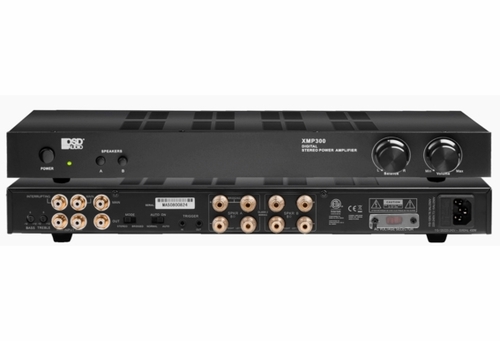

The XMP300 Class D stereo power amplifier delivers 150W of stable power to audio systems at an affordable price. Rack mountable with a slim form factor, the XMP300 cleans up sound quality, improves bass response and delivers the right amount of power to drive speakers in distributed audio systems, home theaters or 2-channel setups. Rated at 150 Watts per channel (8 ohms), 225 per channel (4 ohm) and bridged Mono (8 ohms), key features include line 1 and line 2 priority input switching with a main auxiliary output and front-mounted A/B switches for greater listening flexibility. Combining the best qualities of both class A and B technologies, this highly efficient Class D amp is ideal for budget-minded users who want a feature-rich power amp that does not run hot.

Specifications:

• Design Type: Class D

• Peak Power Output: 150 Watts per channel RMS with <1% THD+N

• Maximum 8 ohm stereo output power at 1% THD+N: 150W

• Maximum 4 ohm stereo output power at 1% THD+N: 225W

• Maximum 8 ohm Bridged-Mono output at 1% THD+N: 450W

• Frequency Response: 10Hz ~ 30kHz, -2dB/ +1dB

• Impedance: 8 ohm to 4 ohm stable

• Signal to Noise Ratio: 100dB below 150W output into 8 ohms w/20kHz

• Turn on options; Signal sensing, “Power On” and Trigger mode

• Automatic Priority Dual Source Switching (labeled Main and Interrupt)

• DSP (Digital Signal Processing): Yes

• Input and Output Terminals: zone A output, zone B output, Interrupting line input, main input/output, 12V trigger

• Rack Mountable? Yes, rack mount ears included

• Dimensions (L x W x H): 21.5" x 13.5" x 4.5"

• Weight: 7.9 Lbs


Learn More From OSD / US$299.00
